Unseen inefficiencies are silently costing your business time and money. Every manual task, unclear handoff, and repetitive workflow adds up, creating friction that slows down growth and drains resources. The solution isn't just working harder; it's working smarter by visualizing how work actually gets done. This is the core power of business process mapping, a critical skill for translating complex operations into clear, actionable diagrams.
Whether you're streamlining a new employee onboarding flow in ClickUp, automating invoice generation from an Airtable base, or trying to understand a cross-departmental project, the right technique reveals bottlenecks you never knew existed. To bring order from chaos, leveraging the right tools for process documentation is essential. Explore various business process documentation template tools to help formalize your visual maps into standardized guides.
This comprehensive guide breaks down nine powerful business process mapping techniques, complete with practical examples for finance, HR, and operations teams. You'll learn how to select the perfect model for any challenge, from simple flowcharts to sophisticated BPMN diagrams. Get ready to transform your tangled workflows into streamlined, efficient, and even automated systems.

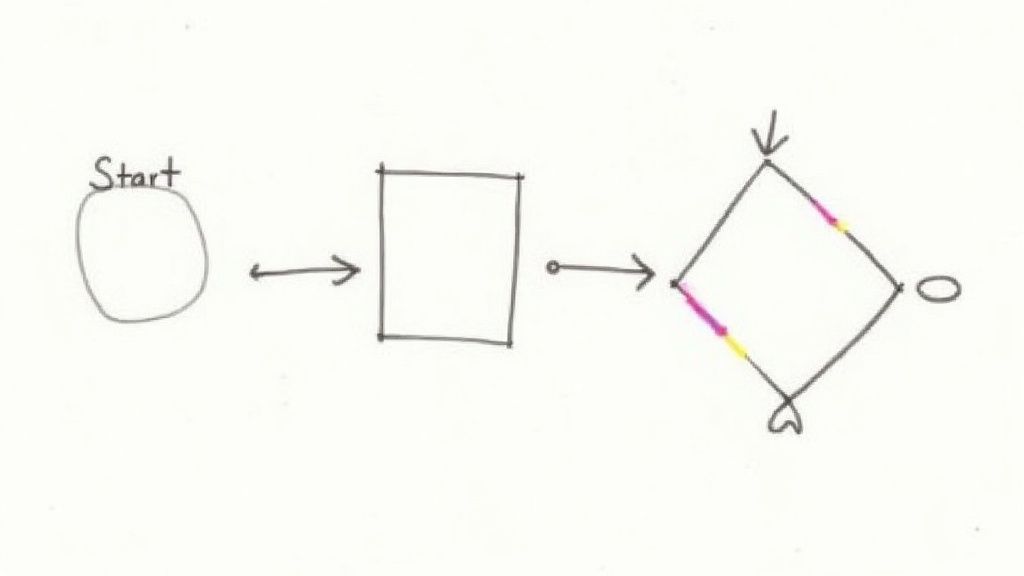

1. Basic Flowcharting
Basic flowcharting is one ofof the most foundational and widely used business process mapping techniques. It provides a simple, graphical representation of a process sequence using a set of standardized symbols. Ovals signify start and end points, rectangles represent process steps, and diamonds denote decision points, creating a clear visual path from beginning to end. This simplicity makes it an ideal starting point for teams new to process documentation.
Pioneered in its early form by efficiency experts Frank and Lillian Gilbreth, this technique visualizes the flow of tasks, information, or materials, making it easier to identify bottlenecks, redundancies, and potential areas for improvement. It is a powerful tool for communication, ensuring everyone from front-line staff to management shares a common understanding of how a process operates.
When to Use This Technique
This method is best for mapping straightforward, linear processes with clear decision points. It's particularly effective for training new employees, documenting standard operating procedures (SOPs), and initial problem-solving before diving into more complex analyses. For example, a small business could use a basic flowchart to map its customer order fulfillment process, from receiving an order to shipping the product. This clarity helps in setting up triggers for future automation.
Practical Implementation and Tips
- Real-World Example: Visualize a simple invoice approval workflow. When a new invoice record is created in an Airtable base, a flowchart can map the steps: send an email notification to the manager (activity), manager reviews the invoice (activity), is the amount over $500? (decision), if yes, route to the department head for a second approval (activity), if no, approve and trigger payment (activity).
- Keep it Focused: Dedicate each flowchart to a single, specific process. If a process is too large, break it down into smaller, interconnected sub-charts to maintain clarity.
- Use a Legend: Always include a legend defining your symbols, especially if you introduce custom shapes for specific tools like a "Zapier step" or "API call."
- Collaborate: Involve the team members who perform the process daily. Their hands-on experience is invaluable for ensuring the flowchart accurately reflects reality. This validation step is crucial before finalizing the map.
By translating operational steps into a simple visual language, basic flowcharting serves as an essential first step toward process optimization and identifying key opportunities for automation. You can explore a variety of business process automation examples that often begin with a simple flowchart.

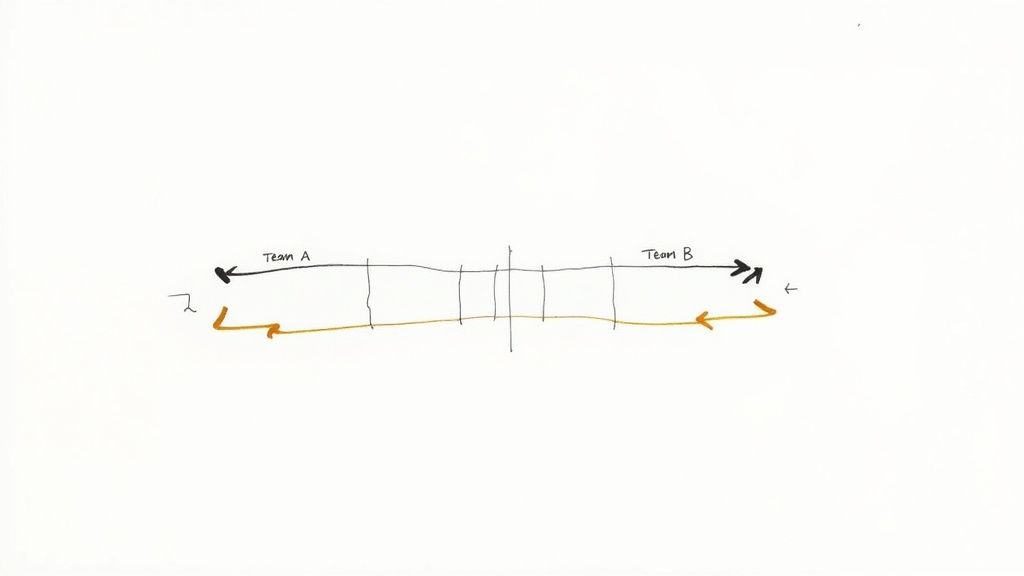

2. Swimlane (Cross-Functional) Diagram
The Swimlane Diagram, also known as a cross-functional flowchart, is one of the most powerful business process mapping techniques for visualizing how tasks move between different teams or roles. It expands on the basic flowchart by organizing process steps into horizontal or vertical "lanes," with each lane representing a specific function, department, or individual. This format makes it exceptionally clear who is responsible for each step and highlights the handoffs between stakeholders.
Popularized by performance improvement pioneers Geary Rummler and Alan Brache, this method is designed to uncover inefficiencies that often occur at the intersection of different business units. By mapping activities within their respective lanes, teams can instantly spot delays, communication gaps, and redundancies caused by unclear responsibilities. It’s an indispensable tool for clarifying complex workflows and fostering accountability across an organization.
When to Use This Technique
Swimlane diagrams are ideal for mapping processes that span multiple departments or involve numerous stakeholders. Use this technique when you need to analyze and improve inter-departmental collaboration, such as a customer service escalation flow or an insurance claims process. It is particularly effective for identifying bottlenecks at handoff points, where work is passed from one team (e.g., Sales) to another (e.g., Finance), which is often a prime area for automation.
Practical Implementation and Tips
- Real-World Example: Consider a customer service escalation process managed in a tool like ClickUp. A swimlane diagram can map this flow with lanes for "Tier 1 Support," "Tier 2 Support," and "Engineering." The map would show a ticket created in Tier 1's lane, then moving to Tier 2's lane if unresolved, and finally to Engineering if a bug is identified, clearly visualizing each handoff.
- Validate Each Lane: Involve representatives from every department or role represented by a lane. This collaborative validation ensures the map accurately reflects the real-world process and responsibilities, building buy-in for future changes.
- Keep Lanes Focused: Limit the number of lanes to only the essential roles or departments involved. Too many lanes can make the diagram cluttered and difficult to read.
- Use Color-Coding: Assign a unique color to each lane for enhanced visual clarity. This makes it even easier to track the process flow as it moves across different functional areas.
By explicitly showing who does what, swimlane diagrams provide the clarity needed to streamline complex, cross-functional operations and pinpoint exact moments for targeted automation interventions.

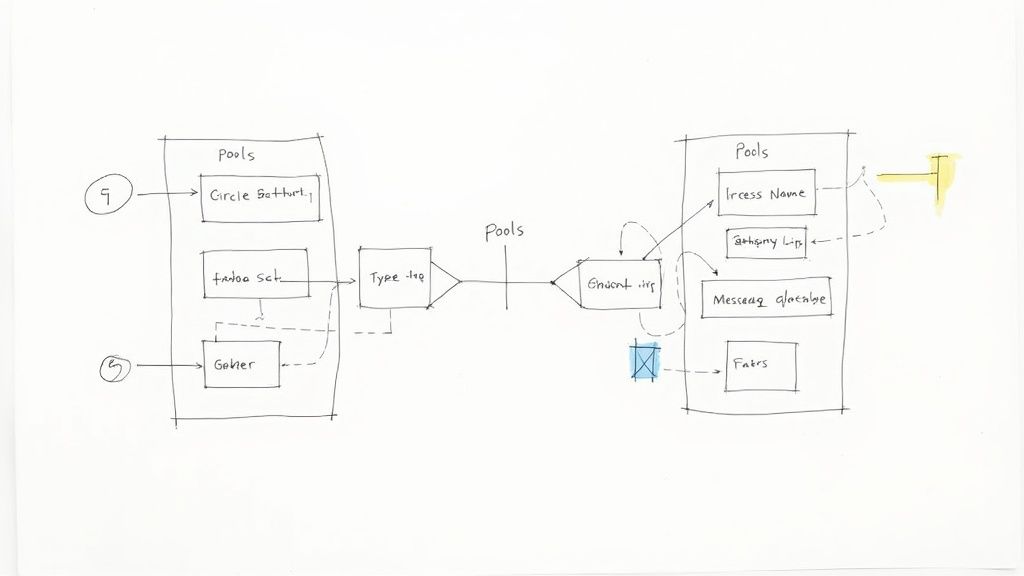

3. Business Process Model and Notation (BPMN)
Business Process Model and Notation (BPMN) is one of the most rigorous and standardized business process mapping techniques. Maintained by the Object Management Group (OMG), BPMN offers a rich, graphical language designed for detailed and unambiguous process modeling. Its comprehensive symbol set covers events, gateways (decisions), tasks, and data flows, making it the de facto standard for complex, enterprise-level process visualization.
Unlike basic flowcharts, BPMN is engineered to be understood by both business stakeholders and technical developers. This shared language bridges the gap between process design and implementation, enabling organizations like Siemens to map intricate order-to-cash processes or insurance firms like Allianz to model claims adjudication workflows with precision. The notation's depth supports everything from simple workflows to complex orchestrations involving multiple systems and departments.
When to Use This Technique
BPMN is ideal for modeling complex, cross-departmental processes that require a high degree of accuracy and are intended for automation. Use it when you need to clearly define interactions between different business entities (e.g., customer, supplier, internal departments) or when the process logic involves multiple exceptions, parallel paths, and specific event triggers. It is particularly powerful when preparing for sophisticated process automation projects where clarity is paramount.
Practical Implementation and Tips
- Real-World Example: Consider automating a client onboarding process that involves multiple teams. A BPMN diagram could map the flow from a "New Client" form submission in Glide. The diagram would show parallel tasks for legal (contract generation) and finance (credit check), followed by a gateway that waits for both to complete. Once complete, it could trigger an automated task to create a project in ClickUp and send a welcome package, illustrating how different events and systems interact.
- Start with "BPMN Lite": The full symbol set can be overwhelming. Begin by using only the basic elements: tasks, exclusive gateways (decisions), and start/end events. Gradually introduce more complex symbols like parallel gateways or message events as your team's familiarity grows.
- Use Pools and Lanes Correctly: Use a separate "Pool" only when modeling distinct organizational entities or participants (e.g., "Customer," "Vendor"). Use "Lanes" within a pool to represent different roles or departments within a single organization (e.g., "Sales," "Finance").
- Create Modeling Guidelines: Establish a consistent naming convention for tasks and events, and consider a color scheme to differentiate task types (e.g., blue for manual, green for automated). This improves readability and understanding across the organization.
By providing a precise and standardized visual language, BPMN ensures that complex processes are accurately documented, making it an essential tool for large-scale automation and optimization. Understanding its structure is key when implementing systems that leverage essential document automation features for businesses.

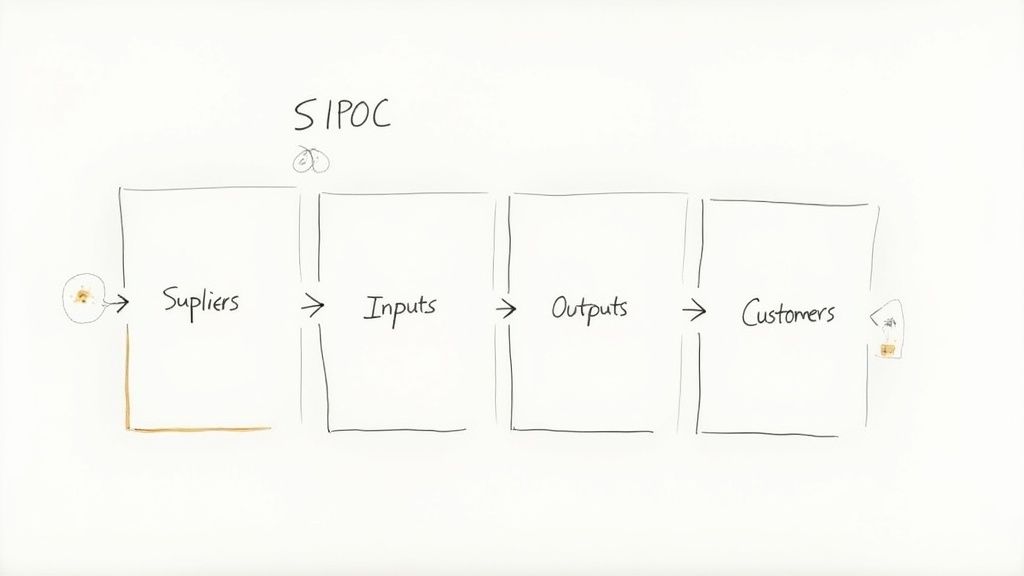

4. SIPOC Diagram
A SIPOC diagram is a high-level process mapping tool that summarizes the inputs and outputs of one or more processes in a simple, tabular format. As one of the core business process mapping techniques originating from the Six Sigma methodology, its name is an acronym for Suppliers, Inputs, Process, Outputs, and Customers. It provides a bird's-eye view of a process, helping to define its scope and align stakeholders before a deeper analysis begins.
Popularized by Six Sigma pioneers at Motorola and General Electric, this technique is not meant to detail every step but to establish clear process boundaries. By identifying who supplies inputs, what those inputs are, the high-level process steps, what the process produces, and who receives those outputs, teams can quickly gain consensus and avoid scope creep in improvement projects.
When to Use This Technique
This method is ideal for the initial "Define" phase of a process improvement project. It’s perfect when you need to provide a high-level overview to leadership or when a project team is unclear on the start and end points of a process. For instance, a finance team looking to overhaul its invoice processing could use a SIPOC diagram to clarify which vendors are involved (Suppliers), what documents are needed (Inputs), the core approval steps (Process), the final approved invoice (Output), and the accounts payable department (Customer).
Practical Implementation and Tips
- Real-World Example: Consider mapping an employee onboarding process using a tool like Airtable. The Suppliers could be HR, IT, and the new hire's department manager. Inputs would include the signed offer letter, I-9 form, and hardware requests. The Process might be summarized as "Create employee record," "Provision accounts," and "Assign equipment." Outputs are a fully onboarded employee and a completed onboarding checklist. The Customers are the new employee and their team.
- Keep it High-Level: The "Process" column should contain only 4 to 7 high-level steps. Avoid getting bogged down in details; the goal is to define the scope, not map every action.
- Work from the Inside Out: Many teams find it easier to start by defining the core process steps first, then working outward to identify the outputs, customers, inputs, and suppliers.
- Validate with Stakeholders: Involve representatives from each column (suppliers, customers, process owners) during the creation of the diagram. This collaborative approach ensures accuracy and builds buy-in from the very beginning.
5. Value Stream Mapping (VSM)
Value Stream Mapping (VSM) is a lean management tool and one of the most powerful business process mapping techniques for analyzing the current state and designing a future state for the series of events that take a product or service from its beginning through to the customer. It visualizes both material and information flows, crucially distinguishing between value-added and non-value-added activities (waste). This allows teams to see not just the process steps but also the flow and the delays between them.
Popularized by the Toyota Production System, VSM quantifies critical metrics like lead time, cycle time, and process uptime, providing a data-rich view of the entire value stream. Its primary goal is to identify and eliminate waste, thereby improving efficiency, reducing costs, and increasing value from the customer's perspective. It offers a holistic view, unlike many other techniques that might focus only on individual process steps.
When to Use This Technique
VSM is ideal for complex, end-to-end processes, especially in manufacturing, supply chain, and logistics, where a product or service flows through multiple stages. Use it when your goal is a complete system overhaul rather than minor tweaks. For example, a software development team could map the entire feature-delivery process, from initial idea generation in a ClickUp board to deployment, to identify and reduce wait times between development, testing, and release. This makes it an essential tool for comprehensive process optimization techniques.
Practical Implementation and Tips
- Real-World Example: Consider an e-commerce company optimizing its order fulfillment. Using VSM, they map every step from a customer order being created in an Airtable base to the package arriving at their door. The map includes data on how long each step takes (picking, packing) and the wait times in between (waiting for packer availability, waiting for carrier pickup). This helps identify the biggest delays and prioritize improvements.
- Start with the Customer: Always begin your map at the end of the process, with the customer, and work your way backward to the suppliers. This keeps the focus on what delivers value to the customer.
- Walk the Process: Involve front-line staff and physically walk the process path (the "gemba walk"). This is crucial for gathering accurate, real-world data on cycle times and delays, rather than relying on assumptions.
- Add Metrics Later: First, sketch out the process flow with simple icons to understand the sequence. Once the flow is agreed upon, go back and add the quantitative data (e.g., inventory levels, cycle times, changeover times).
6. IDEF0 (Integration Definition for Function Modeling)
IDEF0, short for Integration Definition for Function Modeling, is a highly structured and rigorous business process mapping technique. Originating from a U.S. Air Force program, it's designed to model the functions of a system or enterprise. Each function is represented by a box, and arrows show the data and objects that interrelate them: inputs, outputs, controls (rules or constraints governing the function), and mechanisms (resources needed to perform the function). This "ICOM" (Input, Control, Output, Mechanism) structure offers a comprehensive, top-down view of a system.
Developed as part of the ICAM (Integrated Computer-Aided Manufacturing) initiative, IDEF0 provides a standardized language for functional analysis. It excels at breaking down complex systems into manageable, hierarchical components. This method forces a detailed examination of what a process consumes, produces, is guided by, and uses to operate, making it invaluable for system engineering and functional decomposition.
When to Use This Technique
IDEF0 is best suited for analyzing large-scale, complex systems where a clear understanding of functional relationships is critical. It is ideal for engineering, software development, and manufacturing contexts, such as designing a new IT infrastructure or modeling an entire production line. While a small business might find it overly complex for a simple workflow, it’s perfect for a growing tech company mapping out its entire platform architecture before a major overhaul.
Practical Implementation and Tips
- Real-World Example: Consider modeling a new feature deployment process in a software company. The central function box could be "Deploy New Feature." The Input is the "Tested Code Branch." The Controls are "Quality Assurance Standards" and "Release Schedule." The Output is the "Live Feature on Production Server." The Mechanisms are the "DevOps Team," "CI/CD Pipeline Tools (e.g., Jenkins)," and "Cloud Hosting Provider."
- Decompose Hierarchically: Start with a high-level context diagram (A-0) showing the entire system as a single box. Then, decompose that box into 3-6 more detailed child diagrams, maintaining the ICOM relationships.
- One Function Per Box: Strictly adhere to the rule of representing a single, specific function or activity in each box. This prevents ambiguity and keeps the model precise.
- Consistent Labeling: Use clear, noun-based labels for all ICOM arrows and verb-based phrases for function boxes to ensure the diagram is easy to read and understand. This rigor is a core strength of IDEF0 as one of the most structured business process mapping techniques.
7. Event-driven Process Chain (EPC)
An Event-driven Process Chain (EPC) is a powerful and specific business process mapping technique that models processes as a sequence of events and functions. Originating from the ARIS methodology developed by August-Wilhelm Scheer and popularized by SAP, EPCs excel at illustrating cause-and-effect relationships. Events (like "Invoice Received") trigger functions (like "Verify Invoice Data"), which in turn produce new events (like "Invoice Verified"), creating a logical flow.
This event-function-event structure makes EPCs exceptionally clear for analyzing complex business logic, especially within large enterprise systems. They provide a standardized way to describe processes that are heavily dependent on system triggers and states, making them indispensable for mapping workflows within platforms like SAP. The diagram shows not just what happens, but why it happens.
When to Use This Technique
EPC diagrams are ideal for detailed process modeling, particularly for designing and analyzing workflows that will be implemented in an Enterprise Resource Planning (ERP) system. Use this technique when you need to clearly define the conditions that initiate a task and the outcomes that result from it. For example, a large manufacturer like BASF might use an EPC to map its intricate SAP order management process, ensuring every system event and corresponding function is accounted for.
Practical Implementation and Tips
- Real-World Example: Consider a telecommunications service fulfillment process. An event "New Service Request Submitted" in a CRM could trigger the function "Check Network Availability." This function results in one of two events: "Network Available" or "Network Unavailable." Each event then triggers a subsequent function, like "Provision Service" or "Notify Customer of Unavailability," providing a clear, logical path for automation and system integration.
- Model End-to-End First: Start by creating a high-level EPC for the entire process before drilling down into granular details. This provides context and ensures the detailed sub-processes align with the overall business objective.
- Leverage Connectors: EPCs use logical connectors (AND, OR, XOR) to manage complex decision logic where multiple events can trigger a function or a function can result in multiple outcomes. Use them to simplify what would otherwise be a complex web of decision diamonds in a basic flowchart.
- Link to IT Systems: For maximum clarity, link each function in your diagram to the specific IT system, application, or even API endpoint responsible for executing it. This creates a bridge between the business process and the underlying technology stack.
8. UML Activity Diagrams
UML Activity Diagrams are a powerful type of behavior diagram within the Unified Modeling Language (UML) standard. As one of the more technical business process mapping techniques, they excel at modeling the dynamic aspects of a system by showing the workflow of stepwise activities and actions. Originating from software engineering, they are excellent for visualizing complex control flows, including parallel processing, branching, and synchronization.
Developed by the founders of UML, Grady Booch, Ivar Jacobson, and James Rumbaugh, and maintained by the Object Management Group (OMG), these diagrams go beyond simple flowcharts. They use specialized notation to represent actions, control flows, object flows, and decision nodes, making them ideal for specifying system behaviors and interactions between different components or users.
When to Use This Technique
This method is best suited for designing and documenting complex system-level workflows, especially where multiple actors or systems interact concurrently. It is invaluable in software development for modeling use cases, business logic, and operational procedures. For instance, mapping an online checkout process in an e-commerce platform, from adding an item to the cart to payment confirmation, can be clearly detailed with an activity diagram, including system validations and payment gateway interactions.
Practical Implementation and Tips
- Real-World Example: Consider an automated billing process. An activity diagram can map the flow: a trigger (e.g., end of the month) initiates the process, the system fetches usage data from a database (action), calculates the bill amount (action), and generates a PDF invoice via an API like DocsAutomator (action). Simultaneously, another parallel flow could check the customer's account status. The diagram shows how these paths converge before the system emails the invoice to the customer.
- Use Swimlanes: Organize activities into vertical or horizontal lanes, assigning each lane to a specific actor (e.g., "Customer," "System," "Billing Dept."). This clearly shows who is responsible for each step.
- Annotate Transitions: Use guard conditions (e.g.,
[if balance > 0]) on transition arrows to specify the criteria that must be met for the flow to proceed down a particular path. - Separate Process Levels: Create a high-level diagram showing the main process flow. Use separate, more detailed diagrams for complex sub-processes to avoid clutter and maintain readability.
9. Spaghetti Diagram
The Spaghetti Diagram is a lean-management business process mapping technique that visualizes physical movement. By drawing continuous lines over a floor plan or office layout, it tracks the path of people, materials, or information as they move through a process. The resulting web of lines, often resembling a plate of spaghetti, powerfully highlights wasted motion, excessive travel, and inefficient layouts.
Originating from the Toyota Production System and popularized by lean manufacturing advocate Taiichi Ohno, this technique provides a striking visual diagnosis of physical workflow inefficiencies. It moves beyond abstract process steps to ground the analysis in the real-world environment. This makes it an incredibly effective tool for identifying opportunities to reorganize a workspace, streamline material handling, and reduce non-value-added travel time.
When to Use This Technique
This method is ideal for processes with a significant physical component, where movement and layout directly impact efficiency. It is perfectly suited for optimizing a warehouse packing station, reducing a nurse's walking distance in a hospital ward, or redesigning an office layout to improve collaboration between departments. Use it when you suspect that unnecessary motion is a key contributor to delays, fatigue, or operational costs.
Practical Implementation and Tips
- Real-World Example: An e-commerce business using an Airtable base to manage inventory can map the physical path of a warehouse picker. The diagram might show the picker traveling from a packing station to shelf A, then to shelf Z, and back to shelf B. The tangled lines would immediately reveal a disorganized inventory layout, prompting a reorganization of products based on order frequency to minimize travel.
- Observe at Peak Times: Conduct your observations during peak workload periods to capture a realistic and accurate picture of the process under stress.
- Use Color Coding: Use different colored pens or digital lines to track different employees, products, or even different days of the week. This adds another layer of data, helping to identify specific roles or workflows that are particularly inefficient.
- Combine with Value Stream Mapping (VSM): A Spaghetti Diagram is a perfect companion to VSM. Use the VSM to identify "transportation" as a form of waste, then use the Spaghetti Diagram to visually quantify and analyze that waste in detail.
Comparison Matrix of 9 Business Process Mapping Techniques
Turning Maps into Action: Automate Your Optimized Processes
You have now explored a powerful arsenal of business process mapping techniques, from the straightforward visual clarity of a Basic Flowchart to the comprehensive detail of a BPMN diagram. We’ve seen how Swimlane Diagrams clarify roles and handoffs, how Value Stream Mapping exposes waste, and how Spaghetti Diagrams untangle physical workflows on a factory floor or in an office. Each of these methods offers a unique lens through which to view, analyze, and ultimately understand the intricate web of activities that drive your business forward.
The core takeaway is that there is no single "best" technique. The right choice depends entirely on your specific goal. Are you trying to get a high-level overview for stakeholders? A SIPOC diagram is your best bet. Are you detailing a complex, event-driven workflow for developers? An EPC or UML Activity Diagram provides the necessary precision. The power lies not in mastering every single notation but in knowing which tool to pull from your toolkit for the job at hand. By applying these techniques, you move beyond guesswork and start making data-informed decisions to eliminate bottlenecks, reduce errors, and streamline operations.
From Blueprint to Reality: The Automation Bridge
A perfectly designed map is invaluable, but its true worth is only realized when it guides you to your destination. The same is true for your newly optimized process maps. They are blueprints for a more efficient future, and automation is the construction crew that brings that blueprint to life. This is where the theoretical meets the practical, transforming your diagrams from static images into dynamic, living workflows.
For today’s SMEs and agile teams, this transformation is more accessible than ever. Consider these practical automation scenarios, directly translating a mapped process into action:
- Automated Client Onboarding: After using a Swimlane Diagram to clarify the handoffs between Sales, Legal, and Customer Success, you can use Zapier to connect your CRM (like Airtable or ClickUp) to your document and communication tools. When a deal is marked "won," an action can trigger the automatic generation of a personalized contract and welcome packet, assign onboarding tasks in your project management system, and schedule a kickoff call.
- Streamlined Financial Reporting: Your finance team might use a BPMN diagram to detail the month-end closing process. Instead of manually exporting data and creating reports, you can automate it. A tool can pull data directly via an API from your accounting software, populate a standardized report template in Google Docs or Sheets, and notify the relevant stakeholders for review.
- Dynamic HR Document Management: An EPC map of your employee onboarding process can highlight every necessary document, from offer letters to policy acknowledgments. Automation can link your HR information system (HRIS) to a document generator. When a new hire is added in your HR platform (like SmartSuite), it can instantly create a complete, personalized onboarding package, ensuring compliance and a seamless experience.
These examples show that the ultimate goal of using business process mapping techniques is not just to create a diagram, but to build a better operational engine. Once processes are mapped and optimized, the next logical step is to explore general automation solutions that can bring these improvements to life, turning your visual plans into tangible efficiency gains and saving your team countless hours.
Ready to turn your process maps into automated workflows? If your optimized processes involve creating proposals, reports, contracts, or any other documents, DocsAutomator can bridge the final gap. Connect your data source, like Airtable or a custom form, and let DocsAutomator automatically generate polished, data-driven Google Docs without any manual effort. Start building your automated future today.
